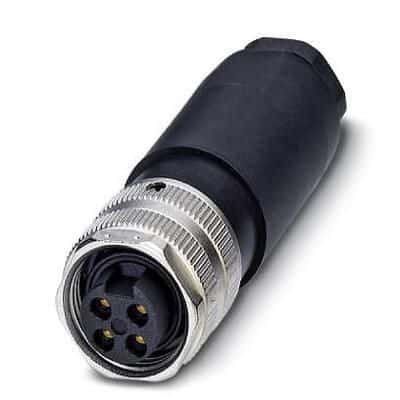

Four-contact female circular connector with straight orientation, designed for free-hanging, cable mounting. Features gold-plated copper alloy contacts and a zinc die-cast shell with nickel finish. Rated for 9A and 300V, with IP67, waterproof, and dust-tight ratings. Operates within a temperature range of -25°C to 85°C and is UL94 HB flammability rated. RoHS compliant with UL and EAC approvals.
Voltage Rating300V
Current Rating9A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Phoenix Contact 1521355 technical specifications.
General
Approvals
UL, EAC
Color
Black, Silver
Contact Finish - Mating
GOLD
Contact Gender
Female
Contact Material
Copper, CuZn, Brass
Contact Plating
Gold
Current Rating
9A
Flammability Rating
UL94 HB
Gender
Female
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Free Hanging, Cable
Number of Contacts
4
Number of Positions
4
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
SACC
Shell Finish
Nickel
Shell Material
ZINC DIE CAST
Termination
Screw
Voltage Rating
300V
Weight
1.730541oz
Compliance
RoHS
Compliant
