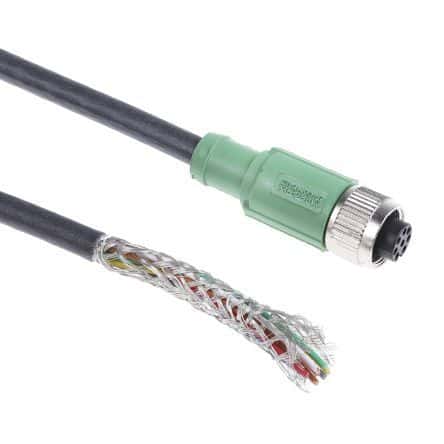

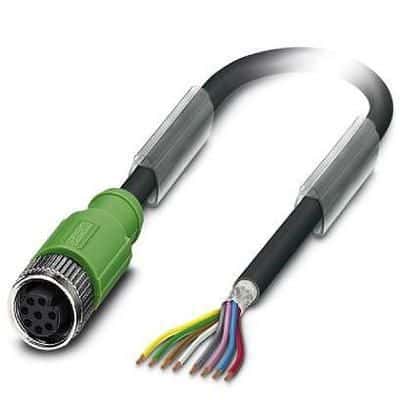

Eight-contact, female socket circular connector with M12 plug and wire leads. Features brass contacts with gold plating, a 2A current rating, and 30V voltage rating. PUR jacket material and 24AWG round wire construction ensure durability. This shielded, free-hanging connector offers IP65, waterproof, water-resistant, and dust-tight ratings.
Voltage Rating30V
Current Rating2A
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1522891 technical specifications.
General
Color
Black, Grey
Connector Type A
Plug, M12, Circular
Connector Type B
Wire Leads
Contact Material
Brass
Contact Plating
Gold
Current Rating
2A
Gender
Female
Jacket Material
PUR
Lead Free
Lead Free
Length
10m
Max Current Rating
2A
Mount
Free Hanging
Number of Conductors
8
Packaging
Bulk
Ratings
IP65, Waterproof, Water Resistant, Dust Tight
RoHS Compliant
Yes
Shielding
Shielded
Voltage Rating
30V
Weight
1.206lb
Wire/Cable Gauge
24AWG
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1522891 Datasheet
Download the complete datasheet for Phoenix Contact 1522891 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
