Voltage Rating30V
Current Rating2A
MountingPanel, Front
Quick Jump:
Technical Specifications
Phoenix Contact 1523492 technical specifications.
General
| Approvals | UL, EAC, IEC |
| Color | Multiple |
| Conductor Material | Copper, Tin |
| Connector Type A | Receptacle, M12, Circular |
| Connector Type B | Wire Leads |
| Contact Material | CuZn |
| Current Rating | 2A |
| Lead Free | Lead Free |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Panel, Front |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Voltage Rating | 30V |
| Weight | 0.871267oz |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Individual |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1523492 Datasheet
Download the complete datasheet for Phoenix Contact 1523492 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

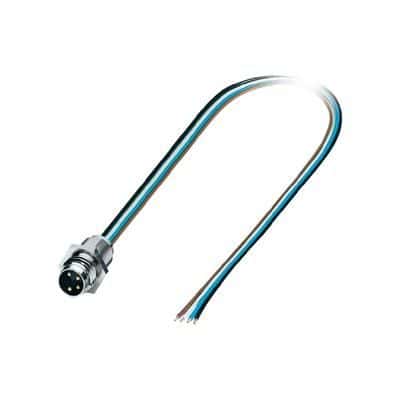

Product Images
