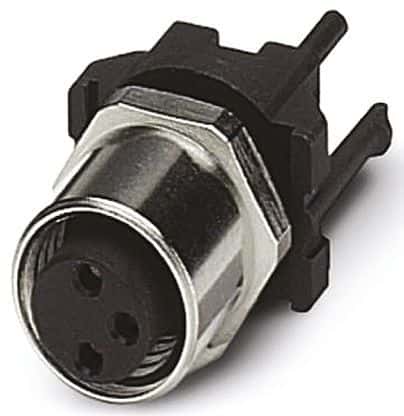

3-position, female circular connector featuring a solder terminal and socket configuration. This sealed connector offers a 4A current rating and a 60V DC voltage rating, with a 50V AC rating. Constructed with a brass shell and copper/tin contacts, it boasts gold contact plating for enhanced conductivity. Rated IP67 for waterproof and dust-tight performance, it operates within a -25°C to 85°C temperature range and is UL94 HB flammability rated. Mounting options include through-hole, panel, bulkhead, and snap-in.
Voltage Rating60V
Current Rating4A
MountingThrough Hole, Panel, Bulkhead, Snap in
Quick Jump:
Technical Specifications
Phoenix Contact 1524776 technical specifications.
General
Color
Black, Silver
Contact Finish - Mating
GOLD
Contact Gender
Female
Contact Material
Copper, Tin
Contact Plating
Gold
Current Rating
4A
Flammability Rating
UL94 HB
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole, Panel, Bulkhead, Snap in
Number of Contacts
3
Number of Positions
3
Package Quantity
20
Packaging
Bulk
Primary Type
Sealed
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
PLUSCON
Shell Finish
Nickel
Shell Material
Brass
Termination
Solder
Voltage Rating
60V
Voltage Rating (AC)
50V
DC Rated Voltage
60V
Weight
0.17637oz
Compliance
RoHS
Compliant
