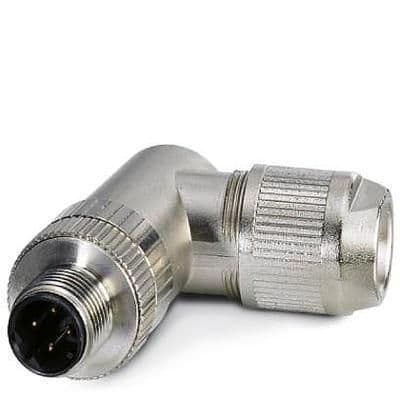

This 4-position, right-angle circular connector features a male gender and IDC termination. It offers a 1.75A current rating and a 60V DC voltage rating, with a maximum operating temperature of 85°C and a minimum of -40°C. The connector is shielded, IP67 rated for waterproof and dust-tight performance, and constructed with a brass shell and copper, tin, and bronze contacts with gold plating.
Voltage Rating60V
Current Rating1.75A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Phoenix Contact 1554539 technical specifications.
General
Color
Silver
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Copper, Tin, Bronze
Contact Plating
Gold
Current Rating
1.75A
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Male
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Cable
Number of Contacts
4
Number of Positions
4
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Primary Type
ETHERNET
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
SACC
Shell Finish
Nickel
Shell Material
Brass
Shielding
Shielded
Termination
IDC
Voltage Rating
60V
Voltage Rating (AC)
48V
DC Rated Voltage
60V
Compliance
RoHS
Compliant
