Phoenix Contact
1642182

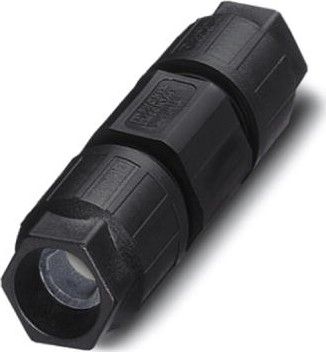

QUICKON cable connector, black, 3+PE-pos., 0.75 mm2 . 1.5 mm2 /500 V/15 A, for a cable diameter of 6 mm .12 mm.
Voltage Rating500V
Current Rating15A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Phoenix Contact 1642182 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 15A |
| Depth | 86mm |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight, IP66 |
| RoHS Compliant | Yes |
| Series | Pluscon, QPD |
| Termination | IDC |
| Voltage Rating | 500V |
| Weight | 1.283972oz |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1642182 Datasheet
Download the complete datasheet for Phoenix Contact 1642182 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
