Phoenix Contact
1687888

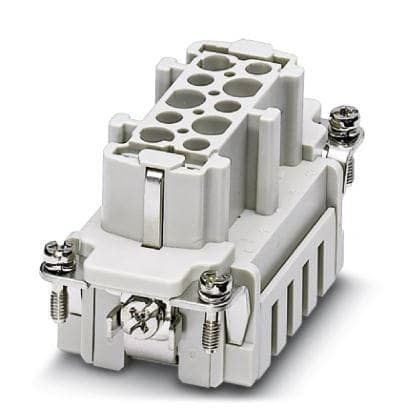

HEAVYCON female housing for B10 housing, with 10 contacts, spring-cage connection
Voltage Rating500V
Current Rating16A
Quick Jump:
Technical Specifications
Phoenix Contact 1687888 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 16A |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Length | 64mm |
| Max Current Rating | 16A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP66 |
| RoHS Compliant | Yes |
| Series | HEAVYCON® B10 |
| Termination | CLAMP |
| Voltage Rating | 500V |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1687888 Datasheet
Download the complete datasheet for Phoenix Contact 1687888 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
