Five-contact male circular connector featuring gold-plated contacts and a screw terminal for 22AWG wire. This free-hanging plug offers a 4A current rating and a 60V voltage rating, operating between -40°C and 85°C. Constructed with a polyamide body and metal housing, it provides IP67, waterproof, and dust-tight protection. The shielded design ensures reliable performance in demanding environments.
PackageMetal
Voltage Rating60V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1693416 technical specifications.
General
Package/Case
Metal
Connector Type A
Circular
Contact Gender
Male
Contact Plating
Gold
Current Rating
4A
Features
Shielded
Lead Free
Lead Free
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Contacts
5
Number of Positions
5
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SACC
Termination
Screw
Voltage Rating
60V
Weight
1.844828oz
Wire/Cable Gauge
22AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1693416 Datasheet
Download the complete datasheet for Phoenix Contact 1693416 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

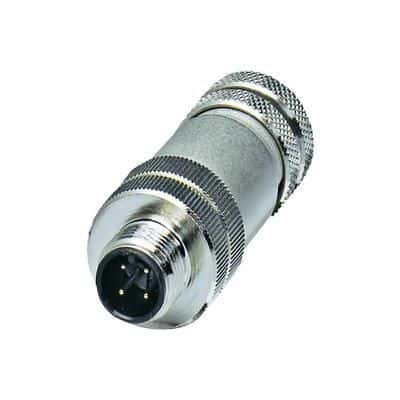

Product Images
