3-position, 1-row barrier strip terminal block with straight, male orientation. Features a 7.62mm pitch, 32A maximum current rating, and 500V maximum supply voltage. Termination is via screw connection, supporting wire gauges from 10AWG to 24AWG. Constructed from green polyamide housing with tin-plated contacts, this RoHS compliant component boasts a UL94 V-0 flammability rating and UL, CSA, cULus, EAC approvals.
Voltage300V
Current30A
Voltage Rating500V
Current Rating32A
Quick Jump:
Technical Specifications
Phoenix Contact 1704936 technical specifications.
General
Approvals
UL, CSA, cULus, EAC
Color
Green
Contact Material
Tin
Current
30A
Current Rating
32A
Depth
12.5mm
Flammability Rating
UL94 V-0
Gender
Male
Height
26.6mm
Housing Color
Green
Lead Free
Lead Free
Length
22.86mm
Material
Polyamide
Max Current Rating
32A
Max Supply Voltage
500V
Mount
Through Hole
Number of Circuits
3
Number of Contacts
3
Number of Levels
1
Number of Poles
3
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
7.62mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
COMBICON MKDS
Termination
Screw
Voltage
300V
Voltage Rating
500V
Weight
0.293479oz
Width
26.6mm
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
10AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1704936 Datasheet
Download the complete datasheet for Phoenix Contact 1704936 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

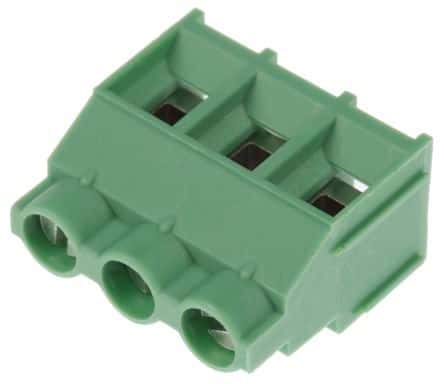

Product Images
