24-position, right-angle flexible flat cable (FFC) / flexible printed circuit (FPC) connector with 5mm pitch. Features screw termination for cable mounting, a 12A current rating, and a 250V voltage rating. Housing is green with tin-plated contacts, offering UL94 V-0 flammability. Designed for free-hanging applications, this connector supports wire gauges from 12AWG to 30AWG.
Voltage300V
Current12A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1754889 technical specifications.
General
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
12A
Current Rating
12A
Depth
18.2mm
Flammability Rating
UL94 V-0
Height
18.2mm
Housing Color
Green
Lead Free
Lead Free
Length
120mm
Max Current Rating
12A
Max Supply Voltage
250V
Mount
Free Hanging, Cable
Number of Circuits
24
Number of Contacts
24
Number of Levels
1
Number of Positions
24
Number of Positions Per Level
24
Number of Rows
1
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Pitch
5mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
MSTB
Termination
Screw
Voltage
300V
Voltage Rating
250V
Weight
12.345887oz
Width
120mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1754889 Datasheet
Download the complete datasheet for Phoenix Contact 1754889 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

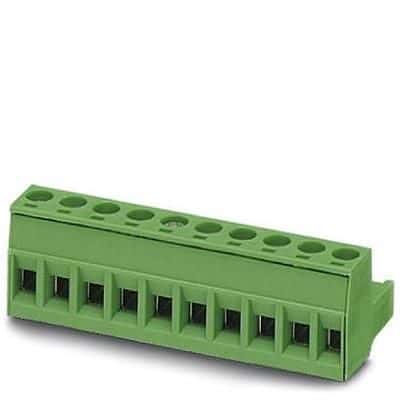

Product Images
