2-position, right-angle terminal block with 5.08mm pitch, designed for cable mounting. Features screw termination, tin-plated copper contacts, and a green nylon housing. Rated for 12A current and 250V voltage, with a maximum operating temperature of 100°C. Approvals include UL and VDE, with UL94 V-0 flammability rating. Suitable for wire gauges from 12AWG to 30AWG.
Voltage300V
Current15A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1757019 technical specifications.
General
Approvals
UL, VDE
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
15A
Current Rating
12A
Depth
18.2mm
Flammability Rating
UL94 V-0
Gender
Male
Height
15mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
10.16mm
Max Current Rating
12A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Supply Voltage
250V
Mount
Free Hanging, Cable
Number of Circuits
2
Number of Contacts
2
Number of Levels
1
Number of Poles
2
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSTB
Termination
Screw
Voltage
300V
Voltage Rating
250V
Weight
4.515067oz
Width
18.3mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1757019 Datasheet
Download the complete datasheet for Phoenix Contact 1757019 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

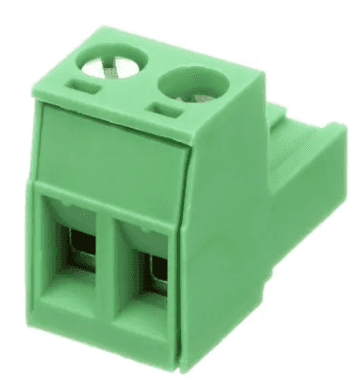

Product Images
