Strip terminal block featuring 3 positions and 1 row, designed for through-hole mounting with a 5.08mm pitch. This component offers a 12A current rating and a 300V voltage rating, with a DC rated voltage of 320V. Constructed with copper contacts plated in tin, it boasts a UL94 V-0 flammability rating and is RoHS compliant. Available in green and grey housing colors, it supports solder termination and is approved by UL and CSA.
Voltage300V
Current12A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1758021 technical specifications.
General
| Approvals | UL, CSA |
| Color | Green, Grey |
| Contact Material | Copper |
| Contact Plating | Tin |
| Current | 12A |
| Current Rating | 12A |
| Depth | 8.6mm |
| Flammability Rating | UL94 V-0 |
| Height | 15.24mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 15.24mm |
| Max Current Rating | 12A |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pin Diameter | 1.4mm |
| Pitch | 5.08mm |
| RoHS Compliant | Yes |
| Series | MSTBV |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 250V |
| DC Rated Voltage | 320V |
| Weight | 5.43219oz |
| Width | 15.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1758021 Datasheet
Download the complete datasheet for Phoenix Contact 1758021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

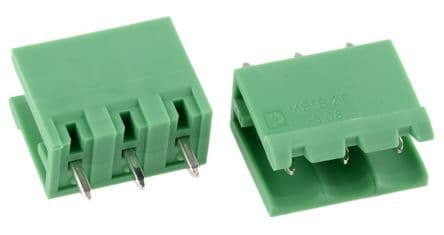

Product Images
