3-position, 1-row barrier strip terminal block with a 5mm pitch. Features a 12A current rating and 250V voltage rating, with a maximum supply voltage of 250V. Constructed with a green polyamide housing and tin-plated copper alloy contacts. Offers screw termination for wire gauges from 12AWG to 30AWG. UL94 V-0 flammability rating and RoHS compliant.
Voltage300V
Current15A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1792537 technical specifications.
General
Approvals
UL, CSA, VDE
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
15A
Current Rating
12A
Depth
12.6mm
Flammability Rating
UL94 V-0
Gender
Female
Height
15mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
15mm
Material
Polyamide
Max Current Rating
12A
Max Supply Voltage
250V
Mount
Free Hanging, Cable
Number of Circuits
3
Number of Contacts
3
Number of Levels
1
Number of Poles
3
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
COMBICON MVSTBW
Termination
Screw
Voltage
300V
Voltage Rating
250V
Weight
3.527lb
Width
26mm
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1792537 Datasheet
Download the complete datasheet for Phoenix Contact 1792537 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

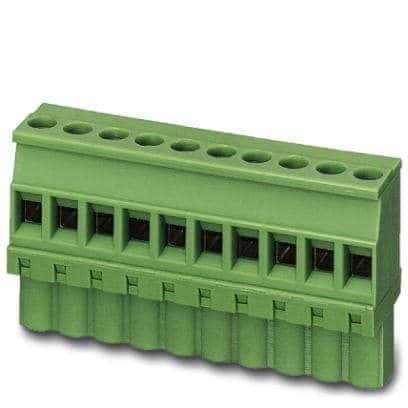

Product Images
