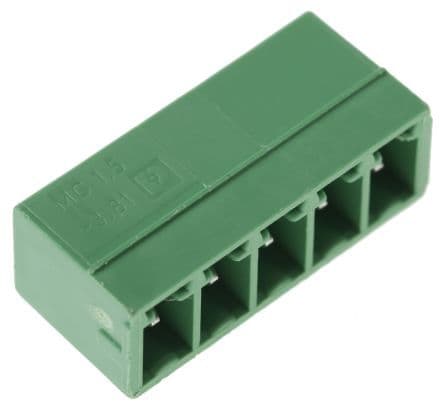

Shrouded header with 5 positions and 3.81mm pitch, featuring right-angle, side-entry, through-hole termination. This green, UL94 V-0 rated component offers 8A current rating and 160V voltage rating, with tin-plated copper contacts. Designed for board-to-board applications, it operates up to 100°C and is RoHS compliant.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1803303 technical specifications.
General
| Approvals | UL, CSA |
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Depth | 9.2mm |
| Flammability Rating | UL94 V-0 |
| Height | 10.65mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 20.44mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 100°C |
| Mount | Through Hole |
| Number of Contacts | 5 |
| Number of Levels | 1 |
| Number of Poles | 5 |
| Number of Positions | 5 |
| Number of Positions Per Level | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 3.81mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MC |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 160V |
| Voltage Rating (AC) | 160V |
| DC Rated Voltage | 640mV |
| Weight | 4oz |
| Width | 20.44mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1803303 Datasheet
Download the complete datasheet for Phoenix Contact 1803303 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
