Modular terminal block featuring 2 positions and 2 circuits, designed for 14-28 AWG wire gauges. This straight, female connector offers a 3.5mm pitch and a 160V DC rated voltage, with a maximum current rating of 8A. Constructed with a green polyamide housing and tin-plated contacts, it boasts UL and VDE approvals and a UL94 V-0 flammability rating. Suitable for free-hanging, cable mounting, this RoHS compliant component is ideal for general interconnect applications.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1862852 technical specifications.
General
Approvals
UL, VDE
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
8A
Current Rating
8A
Depth
10.4mm
Flammability Rating
UL94 V-0
Gender
Female
Height
12.5mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
7.8mm
Material
Polyamide
Max Current Rating
8A
Max Supply Voltage
160V
Mount
Free Hanging, Cable
Number of Circuits
2
Number of Contacts
2
Number of Levels
1
Number of Poles
2
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
3.5mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MCVW
Termination
Screw
Voltage
300V
Voltage Rating
160V
DC Rated Voltage
160V
Weight
0.05538oz
Width
19.1mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1862852 Datasheet
Download the complete datasheet for Phoenix Contact 1862852 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

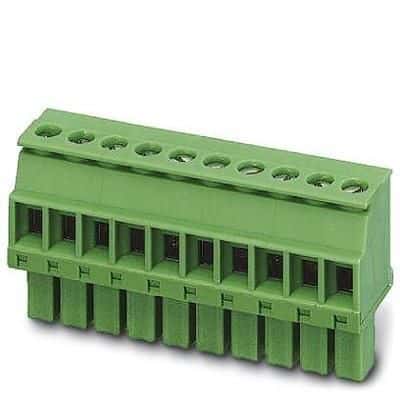

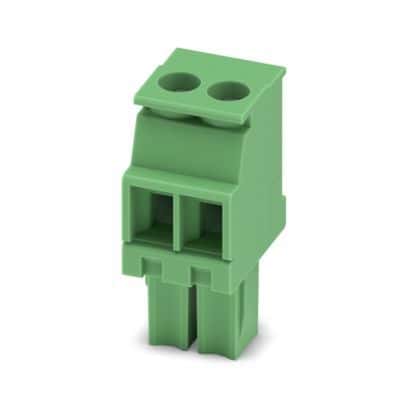

Product Images
