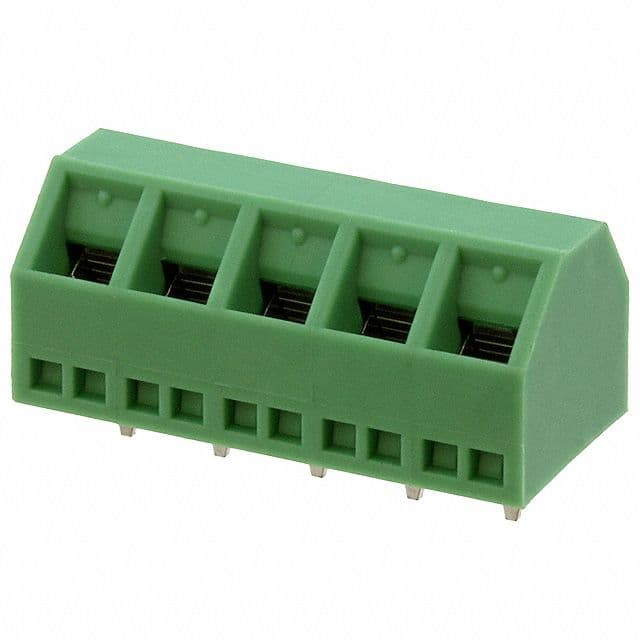

5-position, 1-row, straight male terminal block with 5.08mm pitch. Features a 13.5A current rating, 400V voltage rating, and 250V max supply voltage. Constructed with tin-plated copper contacts and a green polyamide housing, this through-hole component offers UL94 V-0 flammability. Suitable for wire gauges from 14AWG to 26AWG, it is RoHS compliant.
Voltage300V
Current10A
Voltage Rating400V
Current Rating13.5A
Quick Jump:
Technical Specifications
Phoenix Contact 1869240 technical specifications.
General
Approvals
UL, CSA, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
10A
Current Rating
13.5A
Depth
12mm
Flammability Rating
UL94 V-0
Gender
Male
Height
14.5mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
26.4mm
Material
Polyamide
Max Current Rating
13.5A
Max Supply Voltage
250V
Mount
Through Hole
Number of Circuits
5
Number of Contacts
5
Number of Levels
1
Number of Poles
5
Number of Positions
5
Number of Positions Per Level
5
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SMKDSN
Termination
Screw
Voltage
300V
Voltage Rating
400V
Weight
1oz
Width
26.4mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1869240 Datasheet
Download the complete datasheet for Phoenix Contact 1869240 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
