Eight-position, single-level terminal block with 5.08mm pitch, featuring screwless spring clamp termination for wire gauges 12-26 AWG. This straight, free-hanging component offers a 12A current rating and 320V voltage rating, with a UL94 V-0 flammability rating. Approved by VDE, cULus, CB, and EAC, it is RoHS compliant and lead-free.
Voltage300V
Current10A
Voltage Rating320V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1873113 technical specifications.
General
Approvals
VDE, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
10A
Current Rating
12A
Depth
25.6mm
Flammability Rating
UL94 V-0
Height
25.6mm
Housing Color
Green
Lead Free
Lead Free
Length
41.26mm
Max Current Rating
12A
Max Supply Voltage
250V
Mount
Free Hanging
Number of Circuits
8
Number of Contacts
8
Number of Levels
1
Number of Positions
8
Number of Positions Per Level
8
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
FKC
Termination
Screwless
Voltage
300V
Voltage Rating
320V
Weight
4.867807oz
Width
41.26mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1873113 Datasheet
Download the complete datasheet for Phoenix Contact 1873113 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

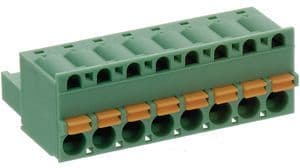

Product Images
