2-position pluggable terminal block with 3.5mm pitch, designed for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. Features screwless termination for wire gauges 26-16AWG, accepting a maximum of 28AWG and minimum of 16AWG. Offers a straight, female orientation with a 1-level, 1-row configuration. Constructed from green polyamide housing with copper, tin contacts plated in tin, and a UL94 V-0 flammability rating. Rated for 8A current and 160V voltage, with VDE, cULus, CB, and EAC approvals.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1939918 technical specifications.
General
Approvals
VDE, cULus, CB, EAC
Color
Green
Contact Material
Copper, Tin
Contact Plating
Tin
Current
8A
Current Rating
8A
Depth
12.4mm
Flammability Rating
UL94 V-0
Gender
Female
Height
12.4mm
Housing Color
Green
Lead Free
Lead Free
Length
7.9mm
Material
Polyamide
Mount
Free Hanging, Cable
Number of Contacts
2
Number of Levels
1
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
0.138inch
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FK-MCP
Termination
Screwless
Voltage
300V
Voltage Rating
160V
Weight
3.597944oz
Width
20.8mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
16AWG
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1939918 Datasheet
Download the complete datasheet for Phoenix Contact 1939918 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

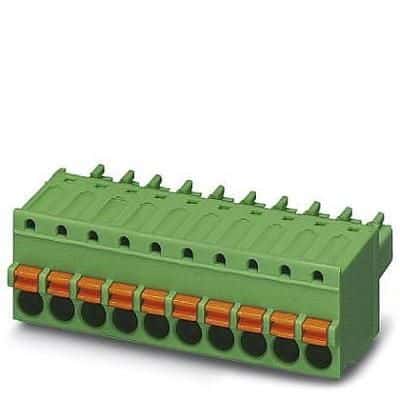

Product Images
