3-position, 1-row, 1-deck barrier strip terminal block with a 3.5mm pitch. Features a 160V voltage rating and 8A current rating, with a maximum current rating of 6A. Accommodates wire gauges from 16AWG to 26AWG and offers screw termination. Constructed with tin-plated contacts and a green UL94 V-0 flammability rated housing, this RoHS compliant component is suitable for free-hanging or cable mounting.
Voltage300V
Current10A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1984028 technical specifications.
General
Approvals
UL, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
10A
Current Rating
8A
Depth
14.6mm
Flammability Rating
UL94 V-0
Height
11mm
Housing Color
Green
Lead Free
Lead Free
Length
10.5mm
Max Current Rating
6A
Max Supply Voltage
160V
Mount
Free Hanging, Cable
Number of Circuits
3
Number of Contacts
3
Number of Levels
1
Number of Poles
3
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Orientation
Right Angle/Straight
Package Quantity
250
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
PT
Termination
Screw
Voltage
300V
Voltage Rating
160V
Weight
0.070195oz
Width
14.6mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
16AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1984028 Datasheet
Download the complete datasheet for Phoenix Contact 1984028 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

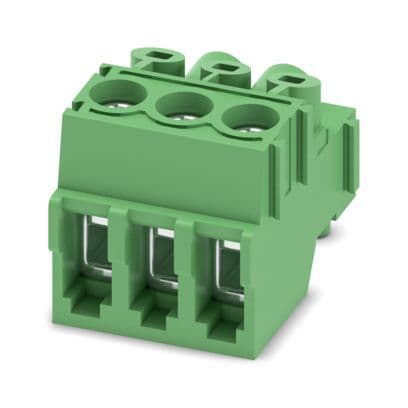

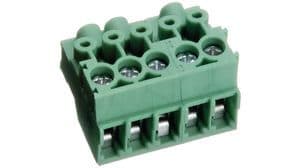

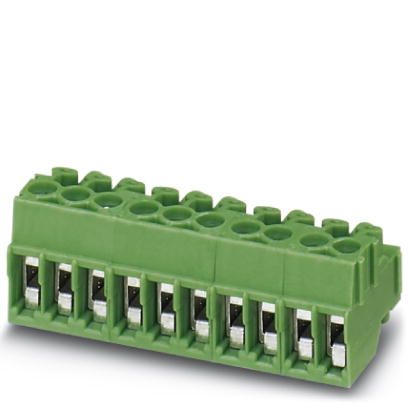

Product Images
