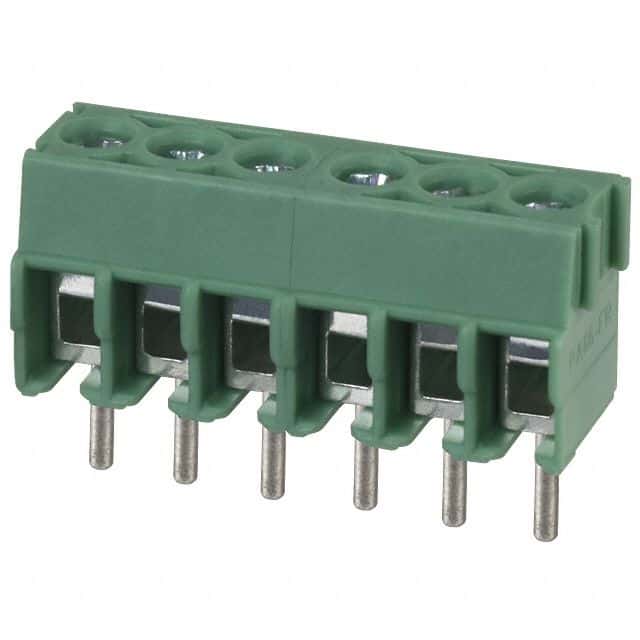

6-position, straight, male PCB terminal block with 3.5mm pitch. Features a 17.5A maximum current rating and 160V voltage rating. Constructed with a green polyamide housing and tin-plated copper contacts. Through-hole mounting with solder termination. UL and EAC approved, RoHS compliant, and UL94 V-0 flammability rated.
Voltage300V
Current10A
Voltage Rating160V
Current Rating17.5A
Quick Jump:
Technical Specifications
Phoenix Contact 1984659 technical specifications.
General
Approvals
UL, EAC
Color
Green
Contact Material
Tin
Current
10A
Current Rating
17.5A
Depth
7.6mm
Flammability Rating
UL94 V-0
Gender
Male
Height
9mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
21mm
Material
Polyamide
Max Current Rating
17.5A
Max Supply Voltage
160V
Mount
Through Hole
Number of Circuits
6
Number of Contacts
6
Number of Levels
1
Number of Poles
6
Number of Positions
6
Number of Positions Per Level
6
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
COMBICON PT
Termination
Screw
Voltage
300V
Voltage Rating
160V
Weight
0.099825oz
Width
21mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
16AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1984659 Datasheet
Download the complete datasheet for Phoenix Contact 1984659 to view detailed technical specifications.
