4-position, 1-level, 3.5mm pitch terminal block with solder termination. Features a 2A current rating and 250V voltage rating, suitable for wire gauges 16-20AWG. Constructed with a green nylon housing and tin-plated copper contacts, it operates within a -40°C to 100°C temperature range. UL94 V-2 flammability rating and UL, VDE, EAC approvals ensure reliable performance.
Voltage300V
Current2A
Voltage Rating250V
Current Rating2A
Quick Jump:
Technical Specifications
Phoenix Contact 1985218 technical specifications.
General
Approvals
UL, VDE, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
2A
Current Rating
2A
Depth
12mm
Flammability Rating
UL94 V-2
Height
13.1mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
12mm
Material
Nylon
Max Current Rating
2A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Supply Voltage
250V
Mount
Through Hole
Number of Circuits
4
Number of Contacts
4
Number of Levels
1
Number of Poles
4
Number of Positions
4
Number of Positions Per Level
4
Number of Rows
1
Number of Ways
4
Package Quantity
250
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
COMBICON PTSA
Termination
Solder
Voltage
300V
Voltage Rating
250V
Weight
0.071959oz
Width
16.7mm
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
16AWG
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1985218 Datasheet
Download the complete datasheet for Phoenix Contact 1985218 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

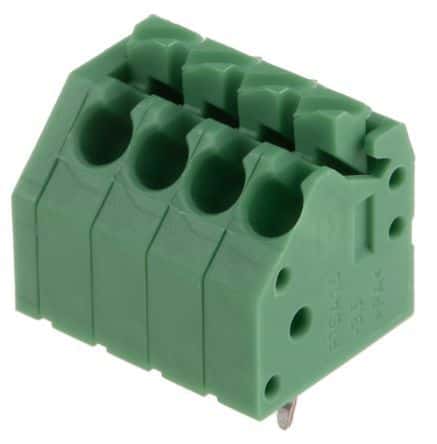

Product Images
