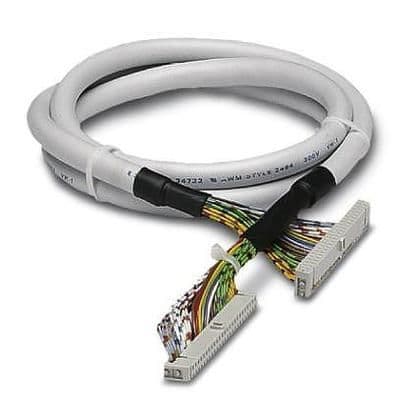

50-position, 2-row interconnection device featuring IDC to IDC connectors. This unshielded, female-to-female component offers tin contact plating and supports 26AWG round wire. Rated for 1A current and 60V DC, with a maximum operating temperature of 50°C and a minimum of -20°C. Approvals include UL and EAC, with lead-free and RoHS compliance.
Current Rating1A
Quick Jump:
Technical Specifications
Phoenix Contact 2289078 technical specifications.
General
Approvals
UL, EAC
Color
Multiple
Connector Type A
IDC
Connector Type B
IDC
Contact Plating
Tin
Current Rating
1A
Gender
Female to Female
Lead Free
Lead Free
Length
3.28foot
Max Current Rating
1A
Max Operating Temperature
50°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
6.05kV
Number of Contacts
50
Number of Positions
50
Number of Rows
2
Packaging
Bulk
RoHS Compliant
Yes
Series
Varioface
Shielding
Unshielded
DC Rated Voltage
60V
Weight
6oz
Wire/Cable Gauge
26AWG
Wire/Cable Type
Round
Compliance
RoHS
Compliant
