This 2-position terminal block features a 400V voltage rating and 32A current rating. It is constructed with nylon insulation and meets the UL94 V-2 flammability rating. The block is available in a package quantity of 50 and is RoHS compliant. It has a terminal width of 6.2mm and a wire gauge range of 12AWG to 24AWG.
Voltage Rating400V
Current Rating32A
Quick Jump:
Technical Specifications
Phoenix Contact 3000117 technical specifications.
General
| Color | Grey |
| Current Rating | 32A |
| Flammability Rating | UL94 V-2 |
| Insulation Material | Nylon |
| Length | 88mm |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | CLIPLINE PIK |
| Terminal Width | 6.2mm |
| Termination | Screw |
| Voltage Rating | 400V |
| Weight | 0.717472oz |
| Width | 6.2mm |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3000117 Datasheet
Download the complete datasheet for Phoenix Contact 3000117 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

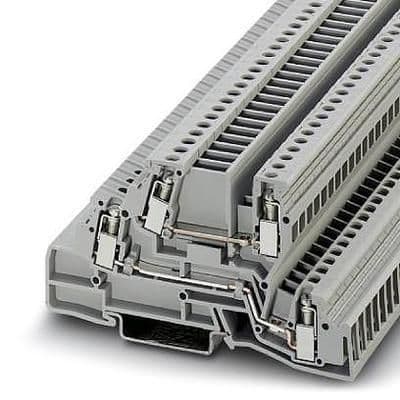

Product Images
