Voltage600V
Current15A
Voltage Rating800V
Current Rating24A
Quick Jump:
Technical Specifications
Phoenix Contact 3050332 technical specifications.
General
| Color | Grey |
| Current | 15A |
| Current Rating | 24A |
| Flammability Rating | UL94 V-0 |
| Insulation Material | Nylon |
| Length | 79.6mm |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | CLIPLINE QTCS |
| Terminal Width | 6.2mm |
| Termination | IDC |
| Voltage | 600V |
| Voltage Rating | 800V |
| Weight | 0.472671oz |
| Width | 6.2mm |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3050332 Datasheet
Download the complete datasheet for Phoenix Contact 3050332 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

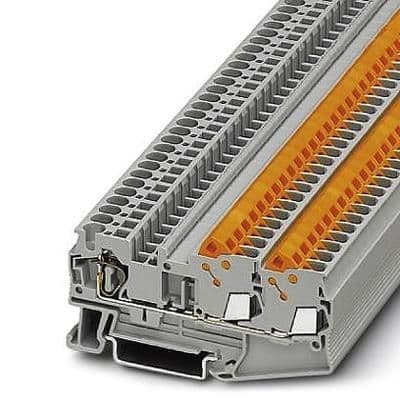

Product Images
