This terminal block from Phoenix Contact features a blue color and is rated for 600V and 24A. It has a nylon insulation material and a screw termination. The block is designed for through hole mounting and has a flammability rating of UL94 V-0. It is available in a package quantity of 50 and is RoHS compliant.
Voltage600V
Current20A
Voltage Rating800V
Current Rating24A
Quick Jump:
Technical Specifications
Phoenix Contact 3064108 technical specifications.
General
| Color | Blue |
| Current | 20A |
| Current Rating | 24A |
| Flammability Rating | UL94 V-0 |
| Height | 55mm |
| Insulation Material | Nylon |
| Length | 57.8mm |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | CLIPLINE UT |
| Terminal Width | 5.2mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 800V |
| Width | 5.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3064108 Datasheet
Download the complete datasheet for Phoenix Contact 3064108 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

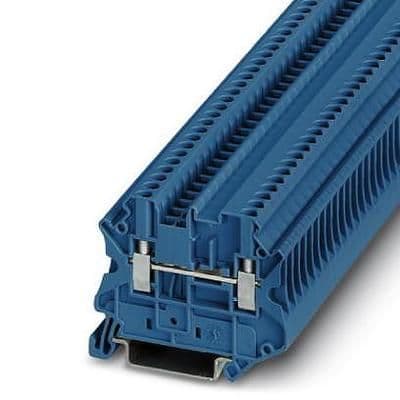

Product Images
