Phoenix Contact
3070011
UT Series 3-Position Terminal Block, 500V, 20A, Through Hole, Nylon Insulation
The UT Series 3-position terminal block is designed for high-current applications, with a current rating of 20A and a voltage rating of 500V. It features a through-hole mount and is constructed with nylon insulation for reliable electrical performance. The terminal block is available in packs of 50 and is compliant with RoHS regulations. It measures 57.8mm in length and 6.2mm in width, with a maximum wire gauge of 26AWG and a minimum of 10AWG.
Voltage Rating500V
Current Rating20A
MountingThrough Hole
Quick Jump:
Technical Specifications
Phoenix Contact 3070011 technical specifications.
General
| Color | Grey |
| Current Rating | 20A |
| Flammability Rating | UL94 V-0 |
| Insulation Material | Nylon |
| Length | 57.8mm |
| Mount | Through Hole |
| Number of Positions | 3 |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | UT |
| Terminal Width | 6.2mm |
| Termination | Screw |
| Voltage Rating | 500V |
| Width | 6.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3070011 Datasheet
Download the complete datasheet for Phoenix Contact 3070011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

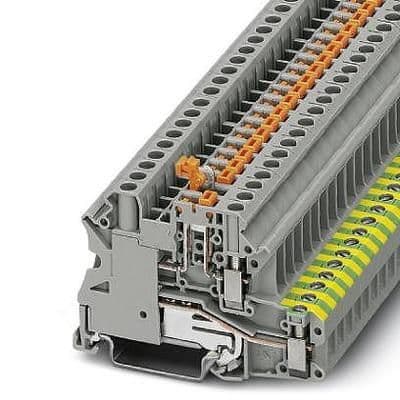

Product Images
