This terminal block features a 4-position design with a current rating of 20A and a voltage rating of 300V. It is constructed with nylon insulation and has a flammability rating of UL94 V-0. The block is available in a package quantity of 50 and is RoHS compliant. It is designed for through-hole mounting and has a terminal width of 6.2mm. The block is suitable for use in a variety of applications, including those requiring high current and voltage handling.
Voltage300V
Current20A
Voltage Rating6kV
Current Rating20A
Quick Jump:
Technical Specifications
Phoenix Contact 3073076 technical specifications.
General
| Color | Blue |
| Current | 20A |
| Current Rating | 20A |
| Flammability Rating | UL94 V-0 |
| Insulation Material | Nylon |
| Length | 65.4mm |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | UT |
| Terminal Width | 6.2mm |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 6kV |
| Width | 6.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3073076 Datasheet
Download the complete datasheet for Phoenix Contact 3073076 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

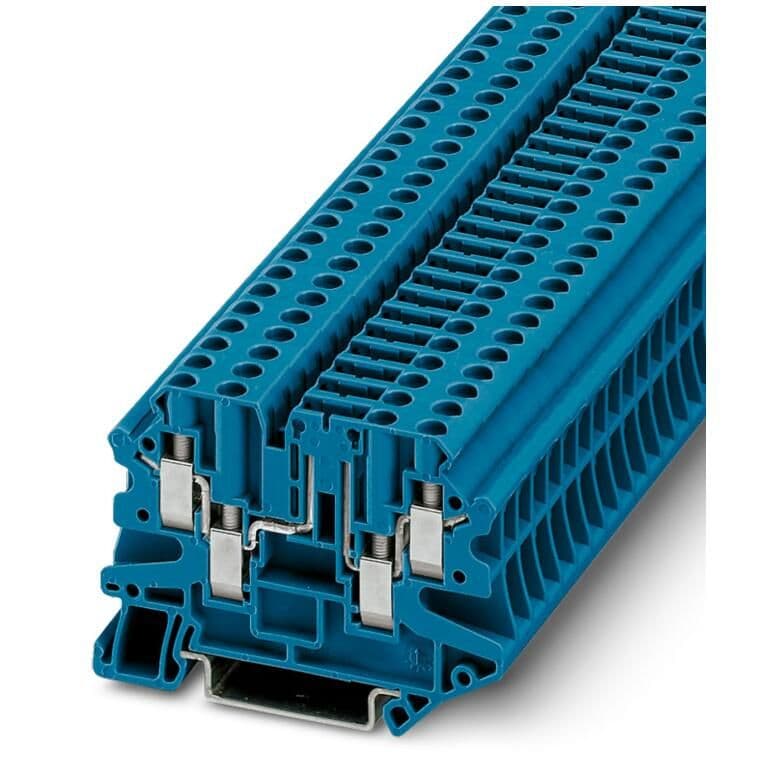

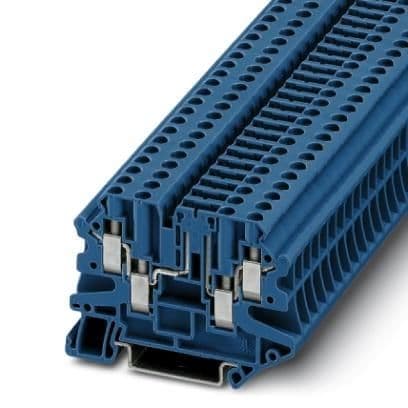

Product Images
