Voltage600V
Current10A
Voltage Rating800V
Current Rating17.5A
Quick Jump:
Technical Specifications
Phoenix Contact 3206348 technical specifications.
General
| Approvals | cULus, UL, EAC |
| Color | Grey |
| Current | 10A |
| Current Rating | 17.5A |
| Flammability Rating | UL94 V-0 |
| Insulation Material | Nylon |
| Length | 71.6mm |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | CLIPLINE QTCS |
| Terminal Width | 5.2mm |
| Termination | IDC |
| Voltage | 600V |
| Voltage Rating | 800V |
| Weight | 2.646lb |
| Width | 5.2mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3206348 Datasheet
Download the complete datasheet for Phoenix Contact 3206348 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

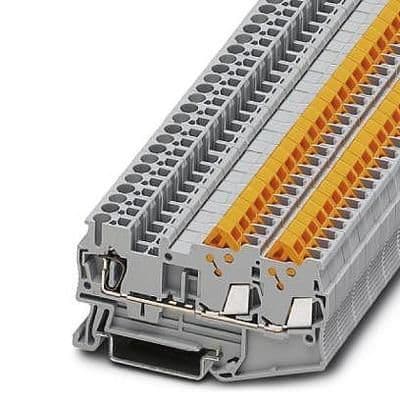

Product Images
