Voltage300V
Current20A
Voltage Rating500V
Current Rating24A
Quick Jump:
Technical Specifications

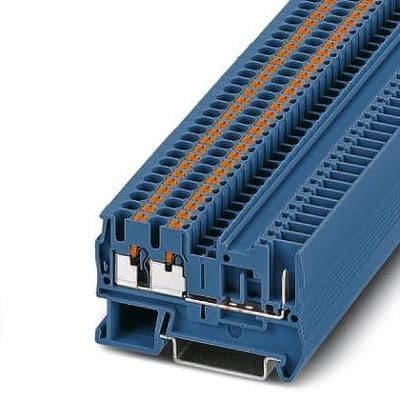

Phoenix Contact 3209646 technical specifications.
General
| Color | Blue |
| Current | 20A |
| Current Rating | 24A |
| Flammability Rating | UL94 V-0 |
| Height | 1.732inch |
| Housing Color | Blue |
| Insulation Material | Nylon |
| Length | 2.382inch |
| Mount | DIN Rail |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | PT |
| Terminal Width | 5.2mm |
| Termination | Plug |
| Voltage | 300V |
| Voltage Rating | 500V |
| Width | 5.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3209646 Datasheet
Download the complete datasheet for Phoenix Contact 3209646 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
