Voltage300V
Current20A
Voltage Rating6kV
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 3209882 technical specifications.
General
| Approvals | UL, CSA, EAC |
| Color | Grey |
| Current | 20A |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Mount | Free Hanging |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Package Quantity | 50 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | CLIPLINE COMBI PP-H |
| Termination | Screwless |
| Voltage | 300V |
| Voltage Rating | 6kV |
| Width | 5.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3209882 Datasheet
Download the complete datasheet for Phoenix Contact 3209882 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

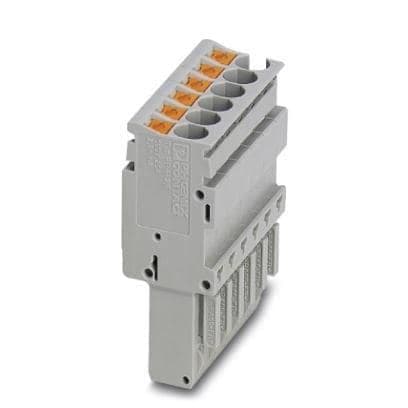

Product Images
