Voltage300V
Current20A
Voltage Rating500V
Current Rating20A
Quick Jump:
Technical Specifications

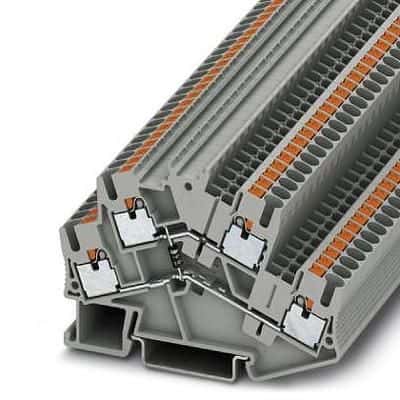

Phoenix Contact 3210295 technical specifications.
General
Approvals
UL, CSA
Color
Grey
Current
20A
Current Rating
20A
Flammability Rating
UL94 V-0
Insulation Material
Nylon
Length
78mm
Mount
Through Hole
Number of Levels
2
Number of Positions
4
Package Quantity
50
RoHS Compliant
Yes
Series
CLIPLINE PTTBS
Terminal Width
5.2mm
Termination
Push-In
Voltage
300V
Voltage Rating
500V
Width
5.2mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 3210295 Datasheet
Download the complete datasheet for Phoenix Contact 3210295 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
