Phoenix Contact
5430205
PCB terminal block Nominal current 13.5 A Nom. voltage 200 V Pitch 3.81 mm Number of positions 7 Connection method Screw connection
Voltage300V
Current10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Phoenix Contact 5430205 technical specifications.
General
| Color | Grey |
| Current | 10A |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Positions Per Level | 7 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 0.15inch |
| Series | COMBICON BC |
| Termination | Screw |
| Voltage | 300V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 5430205 Datasheet
Download the complete datasheet for Phoenix Contact 5430205 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

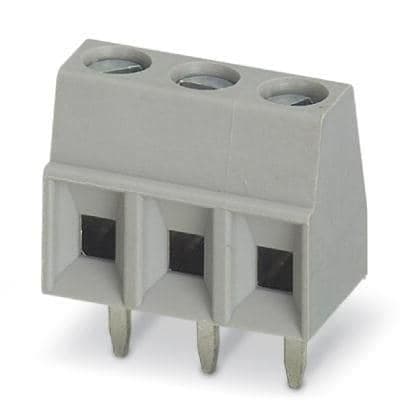

Product Images
