The PicoScope 2204A is a 2-channel oscilloscope with a bandwidth of 10MHz and a sampling rate of 100MS/s. It measures 142mm in length, 92mm in width, and 19mm in height, weighing 0.2kg. The device operates within a temperature range of 0°C to 50°C. It does not comply with SVHC regulations.
Resistance1000000R
Quick Jump:
Technical Specifications
Pico Electronics PicoScope 2204A technical specifications.
General
| Bandwidth | 10MHz |
| Height | 19mm |
| Input Impedance | 1MR |
| Length | 142mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Number of Channels | 2 |
| Reach SVHC Compliant | No |
| Resistance | 1000000R |
| Sampling Rate | 100MS/s |
| Series | PicoScope 2000 |
| Weight | 0.2kg |
| Width | 92mm |
Compliance
| RoHS | Compliant |
Datasheet
Pico Electronics PicoScope 2204A Datasheet
Download the complete datasheet for Pico Electronics PicoScope 2204A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

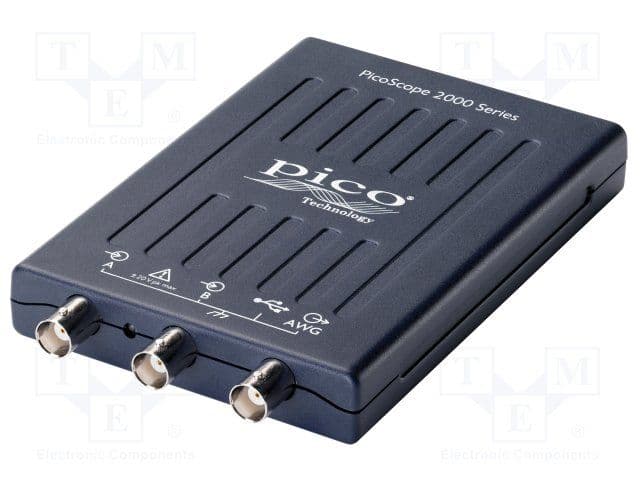

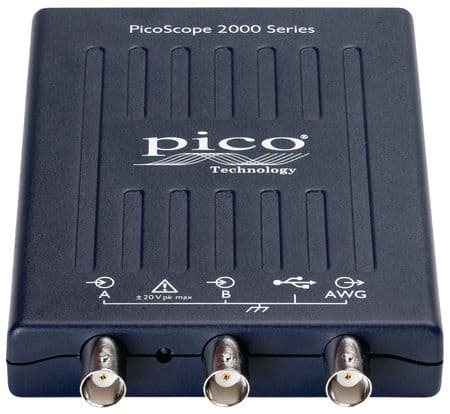

Product Images
