Red, straight, female banana jack connector featuring brass contacts with gold plating and a polycarbonate and brass body. Rated for a maximum of 5A current and 30 VAC/60 VDC, this component offers panel or cable mounting with a turret termination. Its mating end is insulated, and it is lead-free and RoHS compliant.
Current Rating5A
MountingPanel, Cable
Quick Jump:
Technical Specifications
Pomona Electronics 2142-2 technical specifications.
General
Body Material
PC, Polycarbonate, Brass
Color
Red
Contact Material
Brass
Contact Plating
Gold
Current Rating
5A
Gender
Female
Housing Color
Red
Insulation
Mating End Insulated
Insulation Material
Polycarbonate
Lead Free
Lead Free
Length
0.88inch
Max Current Rating
5A
Mount
Panel, Cable
Number of Contacts
1
Number of Ports
1
Orientation
Straight
Package Quantity
1
Packaging
Bag
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Turret
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 2142-2 Datasheet
Download the complete datasheet for Pomona Electronics 2142-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

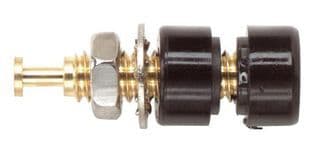

Product Images
