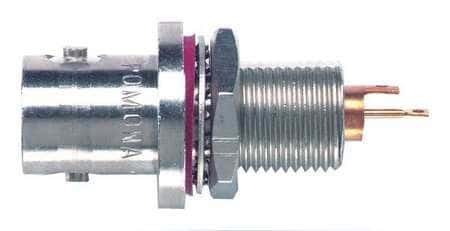

RF Triaxial Connector, female, panel mount receptacle with a vertical orientation. Features a brass body with nickel plating and a PTFE dielectric. Center and contact material is copper with gold plating, offering 50 Ohm impedance and a maximum frequency of 500MHz. Designed for solder termination, it supports a voltage rating of 500V and operates within a temperature range of -65°C to 165°C.
Frequency500MHz
Voltage Rating500V
MountingPanel, Bulkhead, Rear Side Nut
PolarityStandard
Quick Jump:
Technical Specifications
Pomona Electronics 4388 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Frequency
500MHz
Gender
Female
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
33.27mm
Max Frequency
500MHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Panel, Bulkhead, Rear Side Nut
Number of Ports
1
Orientation
Vertical
Package Quantity
2
Packaging
Bulk
Plating
Nickel
Polarity
Standard
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 4388 Datasheet
Download the complete datasheet for Pomona Electronics 4388 to view detailed technical specifications.
