RF Triaxial Connector, Male, Cable Mount, Crimp Terminal, Locking Plug. Features a 50 Ohm impedance and operates up to 500MHz. Constructed with a brass body plated in nickel, and a gold-plated brass/copper center contact. Dielectric is PTFE, with a maximum operating temperature of 165°C and a voltage rating of 500V.
Frequency500MHz
Voltage Rating500V
MountingFree Hanging, Cable
PolarityStandard
Quick Jump:
Technical Specifications
Pomona Electronics 5056 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Brass, Copper
Contact Plating
Gold
Diameter
0.57inch
Dielectric Material
PTFE
Frequency
500MHz
Gender
Male
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
31.62mm
Max Frequency
500MHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 TO 500000000Hz
Orientation
Straight
Package Quantity
2
Packaging
Bulk
Plating
Nickel
Polarity
Standard
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
CLAMP
Voltage Rating
500V
Compliance
RoHS
Not Compliant
Datasheet
Pomona Electronics 5056 Datasheet
Download the complete datasheet for Pomona Electronics 5056 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

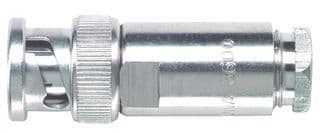

Product Images
