20-position female PLCC socket, surface mount, straight orientation, featuring tin-plated bronze contacts for reliable mating. This component operates within a temperature range of -55°C to 125°C, with a current rating of 1A and a voltage rating of 150V DC / 100V AC. Constructed with glass fiber insulation and a UL94 V-0 flammability rating, it offers a 1.27mm pitch and solder termination.
PackagePLCC
Voltage Rating150V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Preci-Dip 540-88-020-17-400 technical specifications.
General
Package/Case
PLCC
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Depth
14.86mm
Flammability Rating
UL94 V-0
Gender
Female
Height
4.6mm
Insulation Material
Glass fibre
Length
14.86mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
20
Number of Poles
20
Orientation
Straight
Packaging
Bulk
Pitch
1.27mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
540
Termination
Solder
Voltage Rating
150V
Voltage Rating (AC)
100V
DC Rated Voltage
150V
Compliance
RoHS
Compliant
Datasheet
Preci-Dip 540-88-020-17-400 Datasheet
Download the complete datasheet for Preci-Dip 540-88-020-17-400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

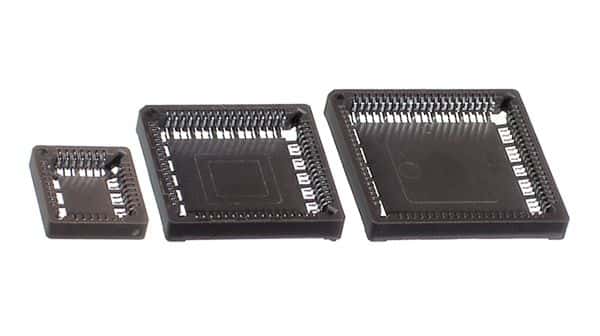

Product Images
