24VDC, 240W switched-mode power supply unit for DIN rail mounting. Features 10A output current and adjustable output voltage from 24V to 28V. Operates with a wide input voltage range of 380VAC to 480VAC and boasts 92.9% efficiency. Compact dimensions of 117mm (L) x 62mm (W) x 124mm (D) with a weight of 750g. Suitable for operating temperatures between -25°C and 70°C.
MountingPanel
Quick Jump:
Technical Specifications
Puls CT10.241 technical specifications.
General
Current - Output 1
10A
Depth
124mm
Efficiency
92.9%
Length
117mm
Max Input Voltage
480V
Min Input Voltage
380V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
Panel
Output Current
10A
Voltage - Output 1
28V
Weight
750g
Width
62mm
Compliance
RoHS
Compliant
Datasheet
Puls CT10.241 Datasheet
Download the complete datasheet for Puls CT10.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

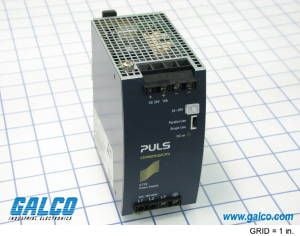

Product Images
