24VDC, 50W switched-mode power supply featuring a 2.1A output current and adjustable output voltage from 24V to 28V. Operates with an input voltage range of 100VAC to 240VAC and boasts 89% efficiency. Designed for DIN rail mounting, this compact unit measures 91mm x 45mm x 75mm and operates within a temperature range of -10°C to 70°C. RoHS compliant and weighing 240g.
Package100
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls ML50.100 technical specifications.
General
Package/Case
100
Current - Output 1
2.1A
Depth
75mm
Efficiency
89%
Length
91mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Output Current
2.1A
Output Voltage
24V
RoHS Compliant
Yes
Voltage - Output 1
28V
Weight
240g
Width
45mm
Compliance
RoHS
Compliant
Datasheet
Puls ML50.100 Datasheet
Download the complete datasheet for Puls ML50.100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

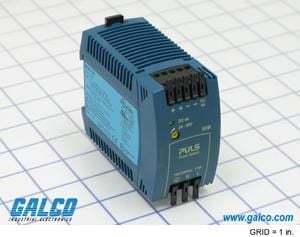

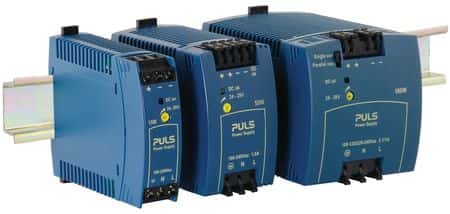

Product Images
