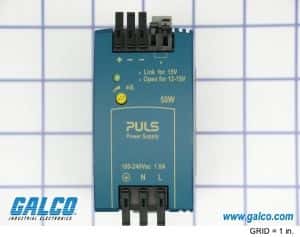

General purpose switched-mode power supply delivering 50W output power. Features adjustable output voltage from 12V to 15V DC with a maximum current of 4.2A. Operates with an input voltage range of 100V to 240V AC, boasting 90% efficiency. Designed for DIN rail mounting, this compact unit measures 91mm x 45mm x 75mm and weighs 260g. Suitable for operation between -10°C and 70°C, it is also RoHS compliant.
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls ML50.102 technical specifications.
General
Current - Output 1
4.2A
Depth
75mm
Efficiency
90%
Length
91mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Voltage
15V
Min Output Voltage
12V
Mount
DIN Rail
RoHS Compliant
Yes
Voltage - Output 1
15V
Weight
260g
Width
45mm
Compliance
RoHS
Compliant
Datasheet
Puls ML50.102 Datasheet
Download the complete datasheet for Puls ML50.102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
