General purpose switched-mode power supply featuring 24V DC output at 40A, delivering 960W. Offers a wide input voltage range from 100V to 240V AC with an impressive efficiency of 94.6%. Designed for operation between -25°C and 70°C, this single-output unit mounts conveniently on DIN rail. Dimensions are 125mm (L) x 127mm (W) x 124mm (D), with a weight of 1.9kg.
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls QS40.241 technical specifications.
General
Depth
124mm
Efficiency
94.6%
Length
125mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Number of Outputs
1
Output Current
40A
RoHS Compliant
Yes
Series
Q
Voltage - Output 1
28V
Weight
1.9kg
Width
127mm
Compliance
RoHS
Compliant
Datasheet
Puls QS40.241 Datasheet
Download the complete datasheet for Puls QS40.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

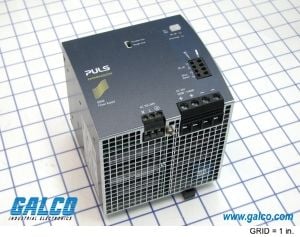

Product Images
