Shielded, right-angle RJ45 connector with two ports, featuring 16 positions and 8 cores per jack. This female, through-hole mount component utilizes gold-plated bronze contacts and is designed for solder termination. Operating within a temperature range of 0°C to 70°C, it offers a depth of 34.29mm and is supplied in trays of 35 units.
MountingThrough Hole
Quick Jump:
Technical Specifications
Pulse JC0-1011NL technical specifications.
General
Color
Green, Yellow
Contact Material
Bronze
Contact Plating
Gold
Depth
34.29mm
Direction
Up and Down
Gender
Female
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Cores per Jack
8
Number of Ports
2
Number of Rows
2
Orientation
Right Angle
Package Quantity
35
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
PULSEJACK™ JC0
Shielding
Shielded
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Pulse JC0-1011NL Datasheet
Download the complete datasheet for Pulse JC0-1011NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

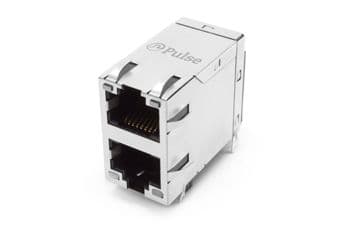

Product Images
