Pulse
W3011

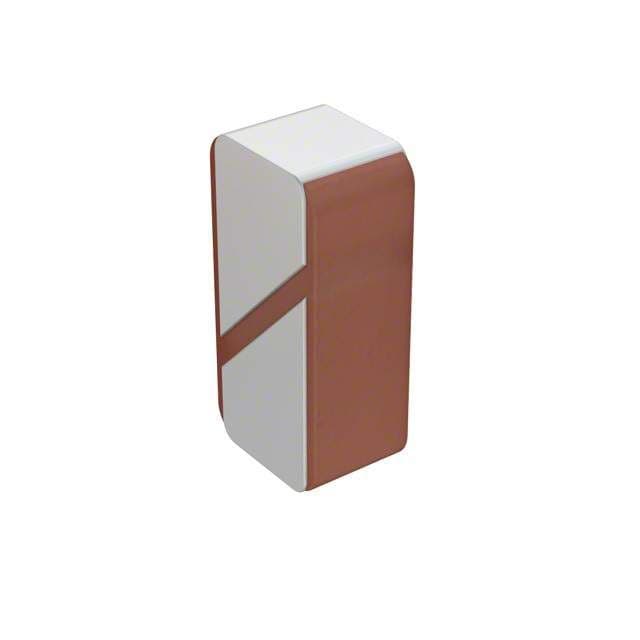

GPS Antenna, 1565.42MHz Min, 1585.42MHz Max, 3dB Gain, 3.20 X 1.60 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN
Frequency1.57542GHz
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Pulse W3011 technical specifications.
General
Frequency
1.57542GHz
Height
0.043inch
Impedance
50R
Lead Free
Lead Free
Max Frequency
1.58542GHz
Min Frequency
1.56542GHz
Mount
Surface Mount, PCB
Number of Bands
1
Package Quantity
3000
Packaging
Cut Tape
Return Loss
-12dB
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Pulse W3011 Datasheet
Download the complete datasheet for Pulse W3011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
