PackageSMD/SMT
Voltage3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Qantek QX533A25.00000B15M technical specifications.
General
Package/Case
SMD/SMT
Fall Time
7ns
Frequency Stability
25ppm
Height
1.3mm
Length
5mm
Load Capacitance
15pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Voltage
3.3V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Qantek QX533A25.00000B15M Datasheet
Download the complete datasheet for Qantek QX533A25.00000B15M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

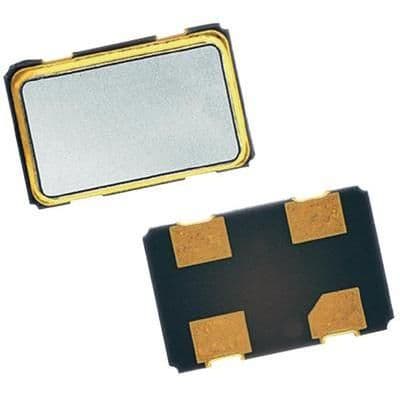

Product Images
