AC power entry receptacle with a right-angle, through-hole mounting design for panel and PCB integration. Features 3 contacts and 2 poles, rated for 15A and 250V AC. Tin-plated pin contacts ensure reliable solder termination. Approved by UL, CSA, VDE, NEMKO, FIMKO, SEMKO, DEMKO, and KEMA for broad application use.
Current15A
Voltage Rating250V
Current Rating15A
MountingThrough Hole, Panel, Flanges, PCB
Quick Jump:
Technical Specifications
Qualtek 703W-00/52 technical specifications.
General
| Application(s) | AC |
| Approvals | UL, CSA, VDE, NEMKO, FIMKO, SEMKO, DEMKO, KEMA |
| Color | Black |
| Contact Plating | Tin |
| Contact Type | Pin |
| Current | 15A |
| Current Rating | 15A |
| Fuse | No |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Max Current Rating | 15A |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, Panel, Flanges, PCB |
| Number of Contacts | 3 |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Pitch | 7mm |
| Primary Type | POWER |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 703W |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Qualtek 703W-00/52 Datasheet
Download the complete datasheet for Qualtek 703W-00/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

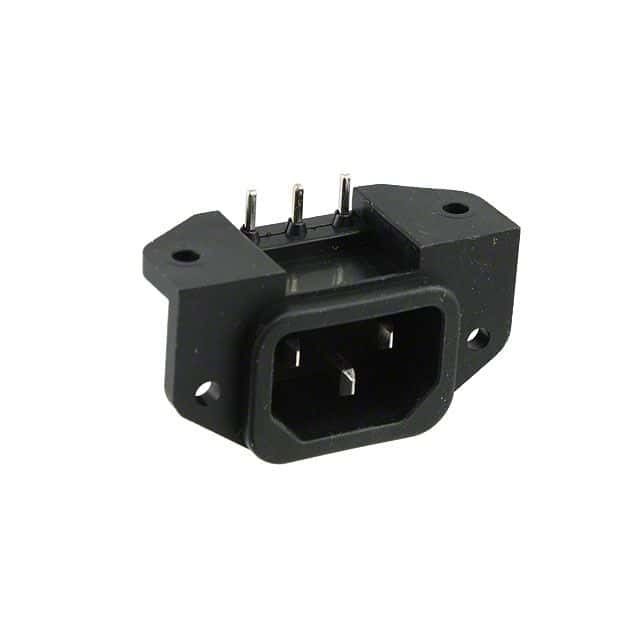

Product Images
