Right-angle, 3-position mains power connector featuring a 15A current rating and 250V AC/DC voltage rating. Constructed with a black nylon body and tin-plated pin contacts, this through-hole mount connector is designed for panel, flange, and PCB applications. It offers solder termination and is compliant with UL, CSA, VDE, NEMKO, FIMKO, SEMKO, DEMKO, and KEMA approvals, as well as RoHS standards.
Current15A
Voltage Rating250V
Current Rating15A
MountingThrough Hole, Panel, Flanges, PCB
Quick Jump:
Technical Specifications
Qualtek 703W-00/54 technical specifications.
General
Approvals
UL, CSA, VDE, NEMKO, FIMKO, SEMKO, DEMKO, KEMA
Body Material
Nylon
Color
Black
Contact Plating
Tin
Contact Type
Pin
Current
15A
Current Rating
15A
Fuse
No
Lead Free
Lead Free
Max Current Rating
15A
Max Voltage Rating (AC)
250V
Mount
Through Hole, Panel, Flanges, PCB
Number of Contacts
3
Number of Poles
3
Number of Positions
3
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
9mm
Primary Type
POWER
RoHS Compliant
Yes
Series
703W
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Qualtek 703W-00/54 Datasheet
Download the complete datasheet for Qualtek 703W-00/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

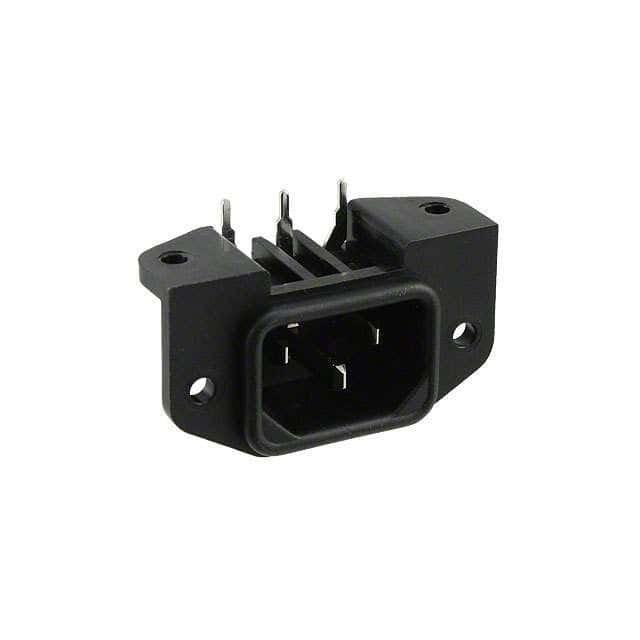

Product Images
