3-position mains power receptacle connector featuring screw termination and a straight orientation. This free-hanging, cable-mount component supports a 10A current rating and a maximum AC voltage of 250V. Constructed with a Nylon body and Nickel plated contacts, it operates within a temperature range of -40°C to 70°C and boasts UL94 V-0 flammability. Approvals include UL, CSA, and VDE, with RoHS compliance.
Voltage Rating250V
Current Rating10A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Qualtek 704-00/00 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Nylon
Contact Plating
Nickel
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Receptacle
Lead Free
Lead Free
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Mounting Style
PLUG
Number of Contacts
3
Number of Positions
3
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
704
Termination
Screw
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
Qualtek 704-00/00 Datasheet
Download the complete datasheet for Qualtek 704-00/00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

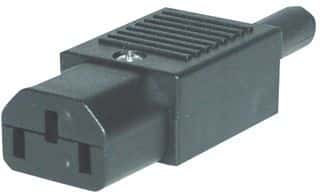

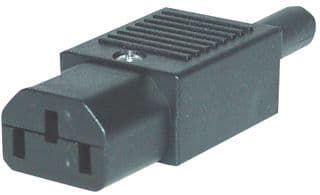

Product Images
