Isolated DC/DC converter, 1W output power, 3.3V fixed output voltage, and 303mA maximum output current. Features 8kV isolation voltage, 80% efficiency, and a wide operating temperature range of -40°C to 85°C. Input voltage range is 4.5V to 5.5V DC. Through-hole mounting in a SIP package.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom R05P3.3S/R8 technical specifications.
General
Package/Case
SIP
Current - Output 1
303mA
Depth
9.8mm
Efficiency
80%
Height
12.5mm
Isolation
Isolated
Isolation Voltage
8kV
Lead Free
Lead Free
Length
19.5mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
303mA
Max Output Power
1W
Max Output Voltage
3.3V
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
5V
Number of Outputs
1
Output Current
303mA
Output Power
1W
Output Voltage
3.3V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE RxxPxx/R (1W)
Voltage - Output 1
3.3V
Weight
4.3g
Width
9.8mm
Compliance
RoHS
Compliant
Datasheet
Recom R05P3.3S/R8 Datasheet
Download the complete datasheet for Recom R05P3.3S/R8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

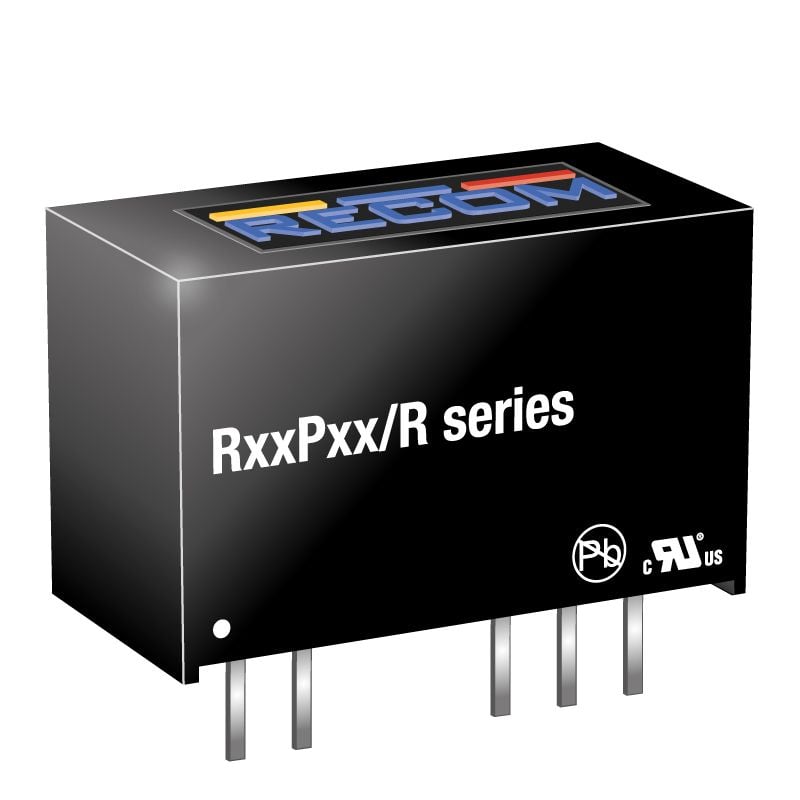

Product Images
