Isolated DC-DC Converter, 1W output power, featuring a 12V nominal output voltage and 83mA maximum output current. Operates with a 3.3V nominal input voltage, within a 2.97V to 3.63V range. Achieves 84% efficiency and offers 1kV isolation voltage. Packaged in a SIP for through-hole mounting, with dimensions of 11.5mm (L) x 6mm (W) x 10mm (H) and a 2.54mm pitch. Includes short-circuit protection (SCP) and operates across a -40°C to 85°C temperature range.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom RO-3.312S technical specifications.
General
Accuracy
1%
Package/Case
SIP
Current - Output 1
83mA
Depth
11.5mm
Efficiency
84%
Features
SCP
Height
10mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
3.63V
Min Input Voltage (DC)
2.97V
Max Input Voltage
3.6V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
83mA
Max Output Power
1W
Max Output Voltage
12V
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
3.3V
Nominal Output Voltage
12V
Number of Outputs
1
Output Current
83mA
Output Power
1W
Output Voltage
12V
Packaging
Rail/Tube
Pitch
2.54mm
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
RO
Voltage - Output 1
12V
Weight
1.4g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RO-3.312S Datasheet
Download the complete datasheet for Recom RO-3.312S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

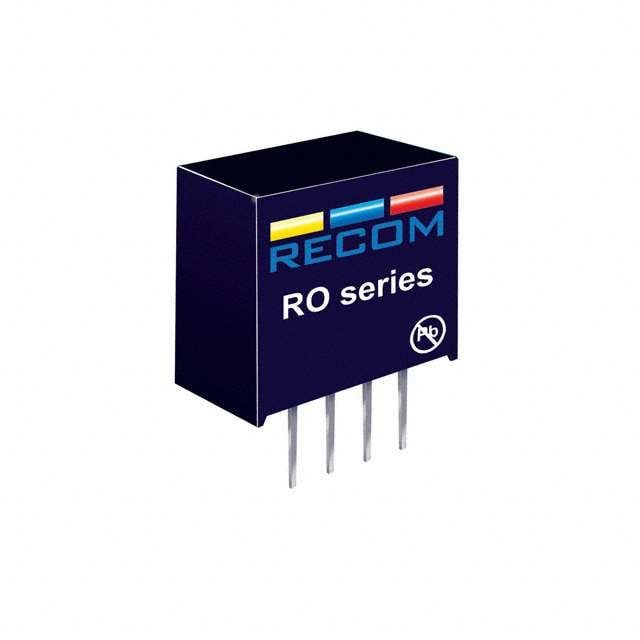

Product Images
