Bidirectional counter/tachometer featuring a backlit LCD display with 8 characters per row. Offers 0.01% accuracy and operates from 9V to 28V DC. Designed for panel mounting with screw termination, this component boasts IP66, IP65, water-resistant, and dust-tight ratings. It operates within a temperature range of -35°C to 75°C and includes programmable front panel reset functionality.
MountingPanel
Quick Jump:
Technical Specifications
Red Lion CUB5B000 technical specifications.
General
Accuracy
0.01%
Approvals
UL, CE, IEC, EN, NEMA
Count Direction
Bidirectional
Depth
0.157inch
Display Type
LCD
Height
39.1mm
Length
34.5mm
Max Operating Temperature
75°C
Min Operating Temperature
-35°C
Max Supply Voltage (DC)
28V
Min Supply Voltage (DC)
9V
Mount
Panel
Number Of Characters Per Row
8
Operating Supply Voltage
28V
Packaging
Box
Ratings
IP66, Water Resistant, Dust Tight, IP65
Reach SVHC Compliant
No
Reset
Programmable, Front Panel
RoHS Compliant
Yes
Series
CUB5
Termination
Screw
Weight
0.221lb
Width
74.9mm
Compliance
RoHS
Compliant
Datasheet
Red Lion CUB5B000 Datasheet
Download the complete datasheet for Red Lion CUB5B000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

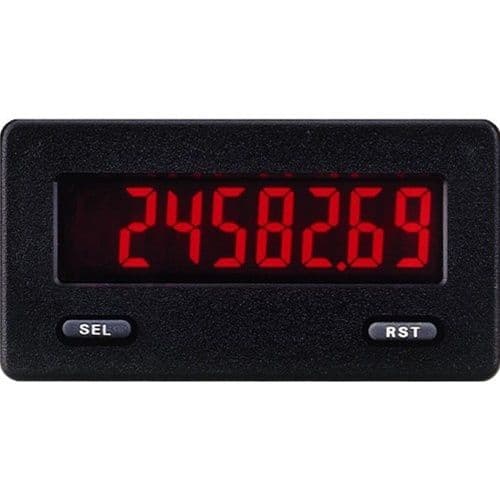

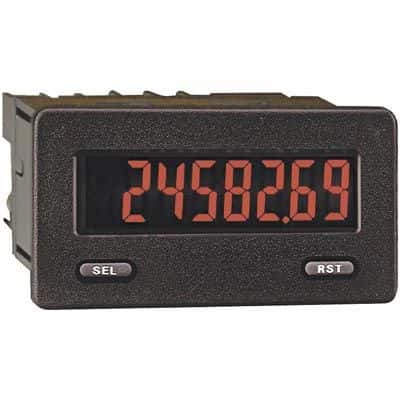

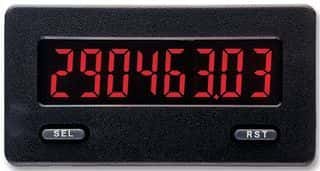

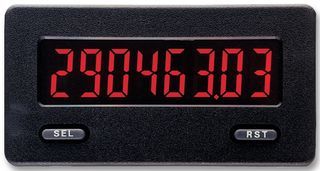

Product Images
